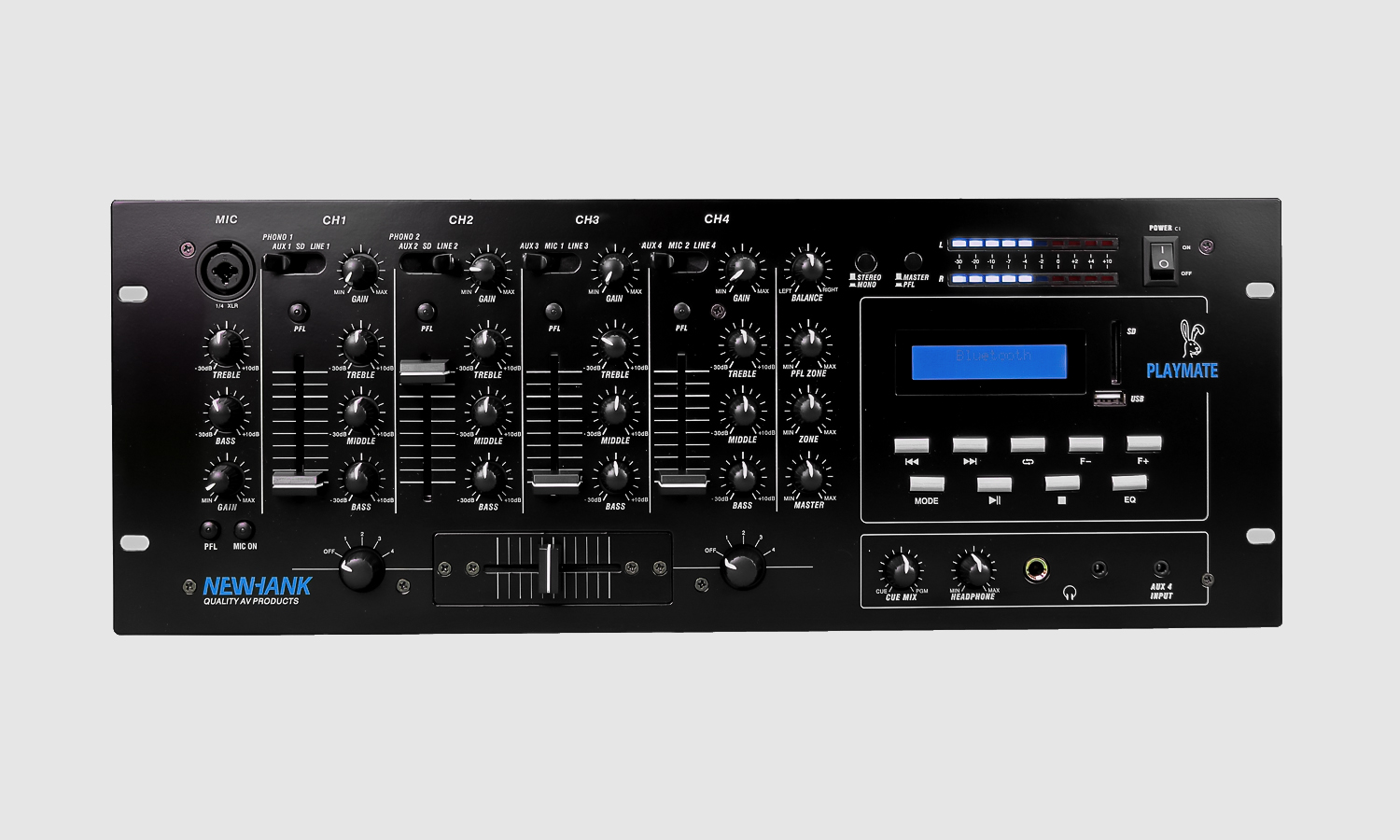

Looking for a very versatile media player and mixer? Meet the NEW NewHanK PLAYMATE professional 4HE 19″ stereo rack mixer and media player. The PLAYMATE offers you plenty of control over your input channels and let’s you connect music sources like Satellite & Cable tuners, CD-players, other type of players or mixers, turntables, microphones, and so on. Connections are on the top – so please remember this while planning your rack. If you need connections on the rear – please check out the the NEW WORKMATE.

Although just 4HE high and equipped with “only” 4 volume faders, there are plenty of connections available on the rear – simply select on the front which input you would like to use. In other words: there are multiple inputs per channel/fader, so you can connect more sources/devices to a single input fader.

The PLAYMATE is equipped with an internal Smart Media Player that can read audio files from a USB stick or SD card (Max 32GB) – and you can use BlueTooth (!!) to connect an external device, such as a mobile phone or another BlueTooth device. The player is capable of reading both WAV and MP3 files.

In terms of output connections you will find a Stereo Master output on balanced XLR’s and unbalanced RCA, and extra Zone and PFL outputs on RCA.

Let the Music Play, Mate!!!

Key features:

• Compact 4u low noise audio design
• 4 Line control channels plus separate microphone section (Hi/Lo EQ)
• 2 phono/line, 6 stereo Line and 3 microphone inputs
• 3-band equalizer per channel (-30dB/+10dB)
• Replaceable assignable crossfader
• Stereo Master audio out on both RCA and balanced XLR
• Stereo (variable) Zone and PFL Zone output
• Master Panorama and Mono option
• High Output Headphone amplifier with Split/Blend mixing control
• Aux4 input on front (3.5mm mini jack for iPhone etc)
• Extremely clean signal-to-noise ratio

The player section:

• Select play from USB, SD (max 32GB) and Bluetooth
• Plays both WAV and MP3 files
• All, Single, Repeat and Random Play

You might be interested in:
– Workmate, 2HE Mixer & Media Player
– InmateUSB, Mixer & Media Player
– MP103USB, 1HE CD and MP3 Player

EAN Code: 8718868408303

Inputs:
- Line/Aux: 10Kohm input impedance, 77mV rms sensitivity for 1.22V output
- Mic: 600 ohm input impedance unbalanced, 1mv rms sensitivity for 1.22V output

Outputs:
Line: 9V rms max
Headphone 0.5W into 47 ohm

Power Supply: Switch Power AC 115-230V-50Hz
Power Consumption: 12W typical, 21W with full headphone output

Dimension : 485 x 85 x 177 mm
Package Dimension : 550 x 500 x 300 mm
Weight : 4 kg
Package Weight : 17 kg
Unit per Package : 4 pc
