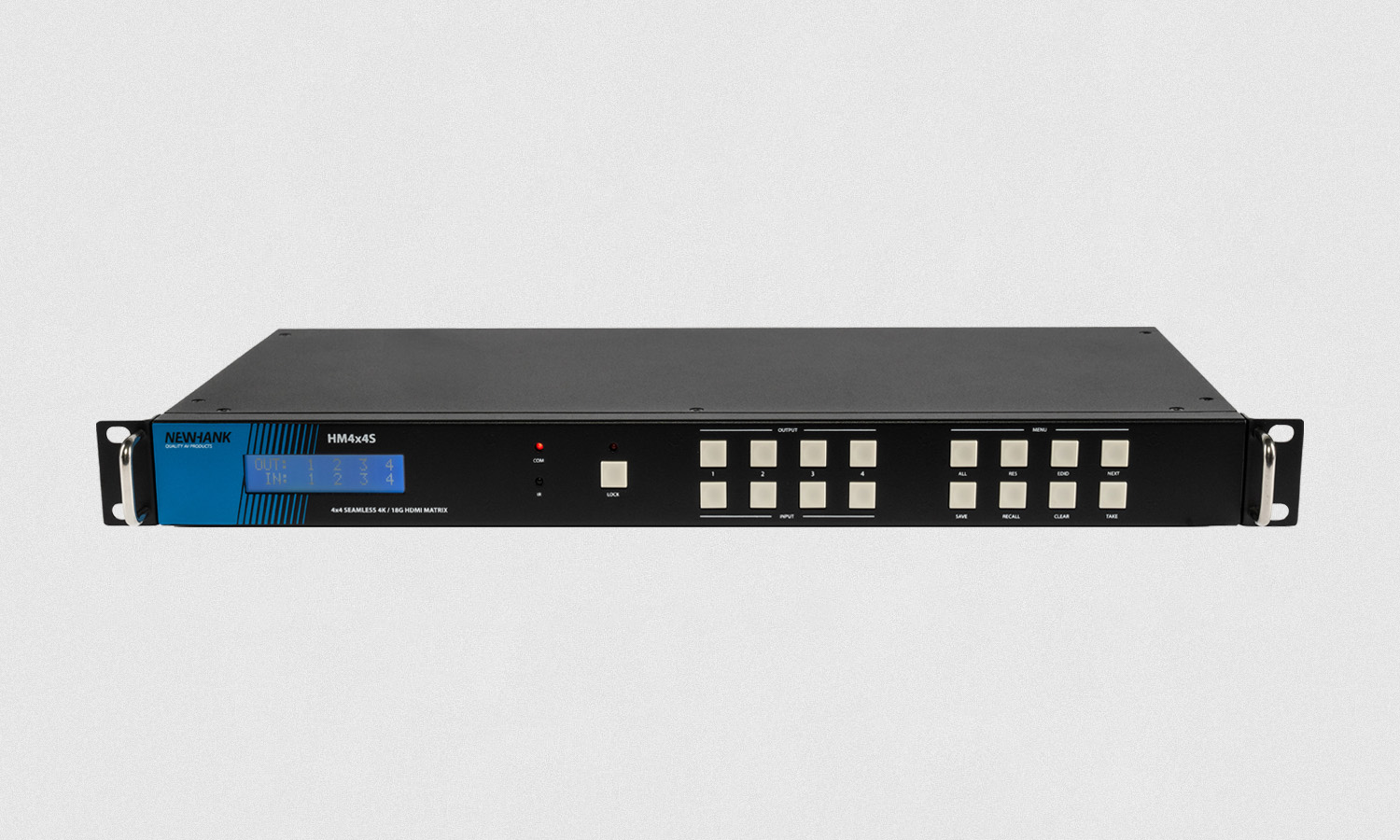

NewHank HM4x4S is a professional 4×4 seamless 4k/ 18Gbps HDMI Matrix Switcher with Audio Matrix. It includes 4 HDMI inputs, 4 HDMI outputs and the last two outputs with down-scaling function, which is designed for switching two HDMI 18Gbps and HDCP2.3 compliant signals. It also features 4 SPDIF and 4 analog audio outputs for audio matrix. Plug and play Lua script for Xilica available.

Pro Features

• 4×4 matrix
• HDMI 2.0 and HDCP 2.2 compliant
• 18 Gbps video bandwidth
• Video resolution up to 4K60 4:4:4
• Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• Seamless switching, video wall func tion
• CEC management
• Audio and IR matrix func tion
• External L/R audio insert on HDMI stream
• EDID management
• Front panel, RS232, TCP/IP (LAN 10M/100M) control

EAN Code: 8718868408211

Video

• Video Input: (4) HDMI
• Video Input Connector: (4) Type-A female HDMI
• Video input Video Resolution: Up to 4K @60Hz 4:4:4
• Video Output: (4) HDMI
• Video Output Connector: (4) Type-A female HDMI
• Video output Video Resolution: Up to 4K@60Hz 4:4:4
• HDMI Output: Supports up to 5V500mA for AoC cable
• HDMI Version: Up to 2.0
• HDCP Version: Up to 2.2
• HDMI Audio Signal: LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through

Digital Audio Output

• Output: (4) Digital SPDIF audio
• Output Connector: (4 ) Toslink connector )
• Digital SPDIF Audio Format: Supports PCM, Dolby Digital, DTS, DTS-HD
• Frequency Response: 20 Hz to 20kHz, ±1dB
• Max Output level: ±0.05dBFS
• THD+N: < 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level)
• SNR: > 90dB, 20Hz-20 kHz bandwidth
• Crosstalk Isolation: < -70 dB, 10 kHz sine at 0dBFS level (or max level before clipping)
• Noise: -90dB

Analog Audio Output

• Output: (4) Analog L/R Audio
• Output Connector: (4 ) L&R (RCA)
• Digital SPDIF Audio Format: PCM 2CH
• Frequency Response: 20 Hz to 20 kHz, ±1dB
• Max output level: 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316 mV) nominal consumer line level signal
• THD+N: < 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level)
• SNR: > 80dB, 20Hz-20 kHz bandwidth
• Crosstalk Isolation: < -80 dB, 10 kHz sine at 0dBFS level (or max level before clipping)
• L-R Level deviation: < 0.05 dB, 1 kHz sine at 0dBFS level (or max level before clipping)
• Frequency Response Deviation: < ± 0.5dB 20Hz - 20KHz
• Output Load Capability: 1k ohm and higher (supports 10x paralleled 10k ohm loads)
• Noise: -80dB

Control

• Control Port : (1) IR EYE, (1) RS232, (1) FIRMWARE, (1) TCP/IP
• Control Connector: (1) 3.5mm jack, (1) 3-pin terminal block, (1) USB -A, (1) RJ45

General

• Transmission Distance: 4K/60Hz/444 5m, 4K/60Hz/420 10m,1080P 15m
• Bandwidth: 18Gbps
• Operation Temperature: 0 ℃~ +40 ℃
• Storage Temperature: -20 ℃ ~ +70 ℃
• Relative Humility: 10% -50%RH
• External Power Supply: AC 110~240V
• Maximum Power Consumption: 60W
• Dimension (W*H*D): 430mm*44mm*220mm
• Weight: 5kg
