Welcome to Newhank DAB FM PLUS

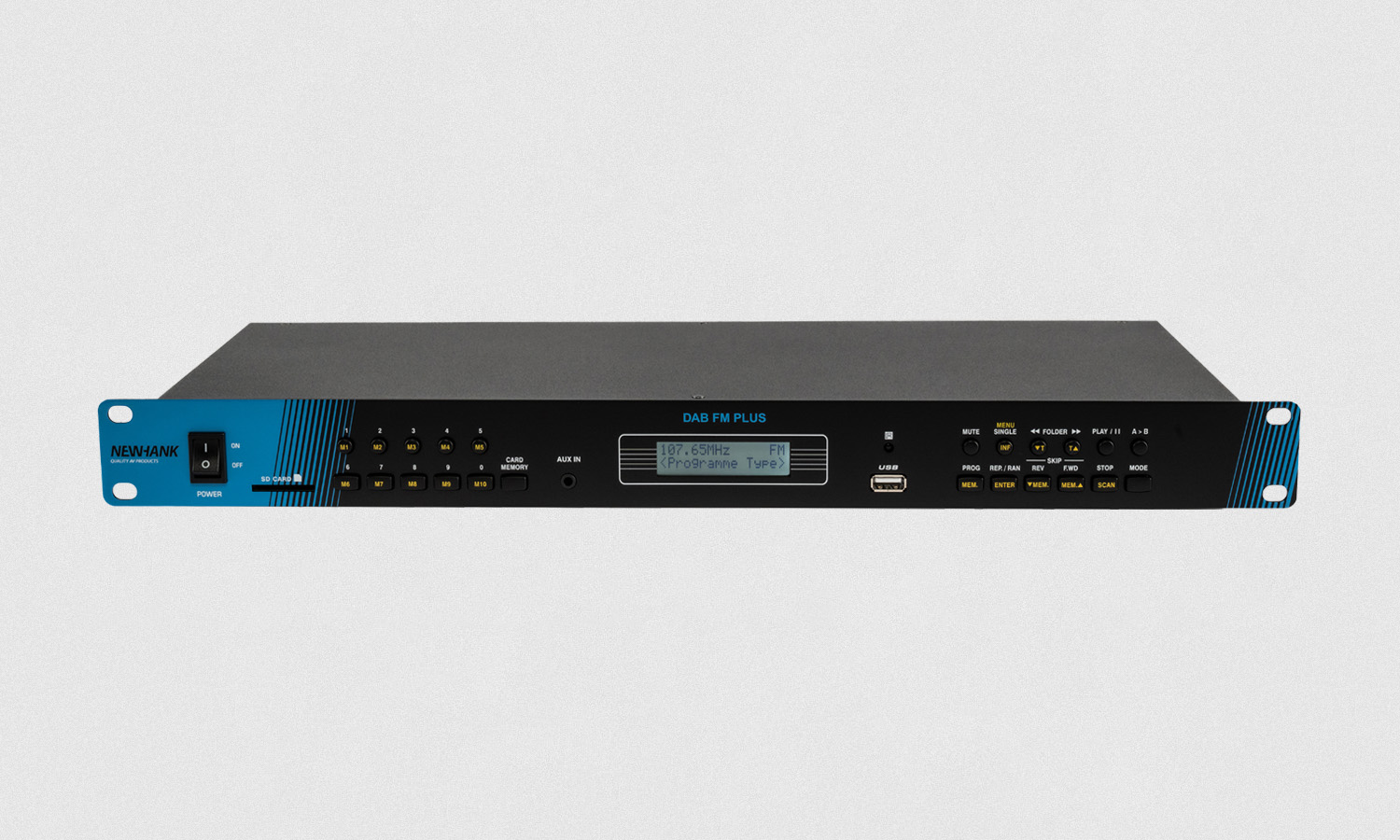

This Professional 19 Quality Stereo DAB+ and FM RDS Tuner, Bluetooth
enables clean reception of more than 30 digital (Dutch) DAB+ or FM Free to Air stations.
Listen to your favourite stations at their DIGITAL best with DAB FM PLUS…
Driver for use with Xilica is released, view more at our Redmine

Key Features:

  • Crystal Clear digital radio reception
  • Auto Station Scan, Easy setup for both DAB and FM stations
  • Store up to 40 presets on DAB+ and FM stations and Bluetooth
  • Showing actual Time and Date in Standby
  • Built-in Alarm Radio and Sleep Timer
  • FM range 87.50 -108Mhz in 5Khz steps
  • FM Tuner with RDS station “AF” – and Traffic INFO “TA” – select button and
    Mono/Stereo switch
  • Power input Both 220/AC max 45 watt / or 12-14.5v/ DC @170mA max
  • 3.5MM Stereo input for audio source
  • Stereo RCA audio output
  • Coax Connector for Both DAB/FM ext aerial
  • iR Remote control (incl battery 1x CR2025) and Wire Aerial are included
  • Also Available as DAB FM RS with RS-232 serial port (same commands as on remote control)*
  • Width 483m (Housing 439mm) , Height 44.4mm(excl rubber feet 3mm), Housing Depth 213mm (excl connectors)
  • Package Dimension: 260 x 310 x 550 mm
  • Weight: 3Kg
  • Package Weight: 14.2Kg
  • Unit per Package: 4pc
  • 2 years Warranty

EAN Code for DAB FM PLUS : 8718868408204

You might be interested in:

Multimate – Internet FM/DAB/DAB+/Radio player

Q: Can I adjust the output level?
A: Nope, its fixed

Q: why are the stations not displayed correctly?
A: After you have made the station scan before you continue, you need to wait for "Tuning" to dissapear on the Display as this can take a few minutes.
