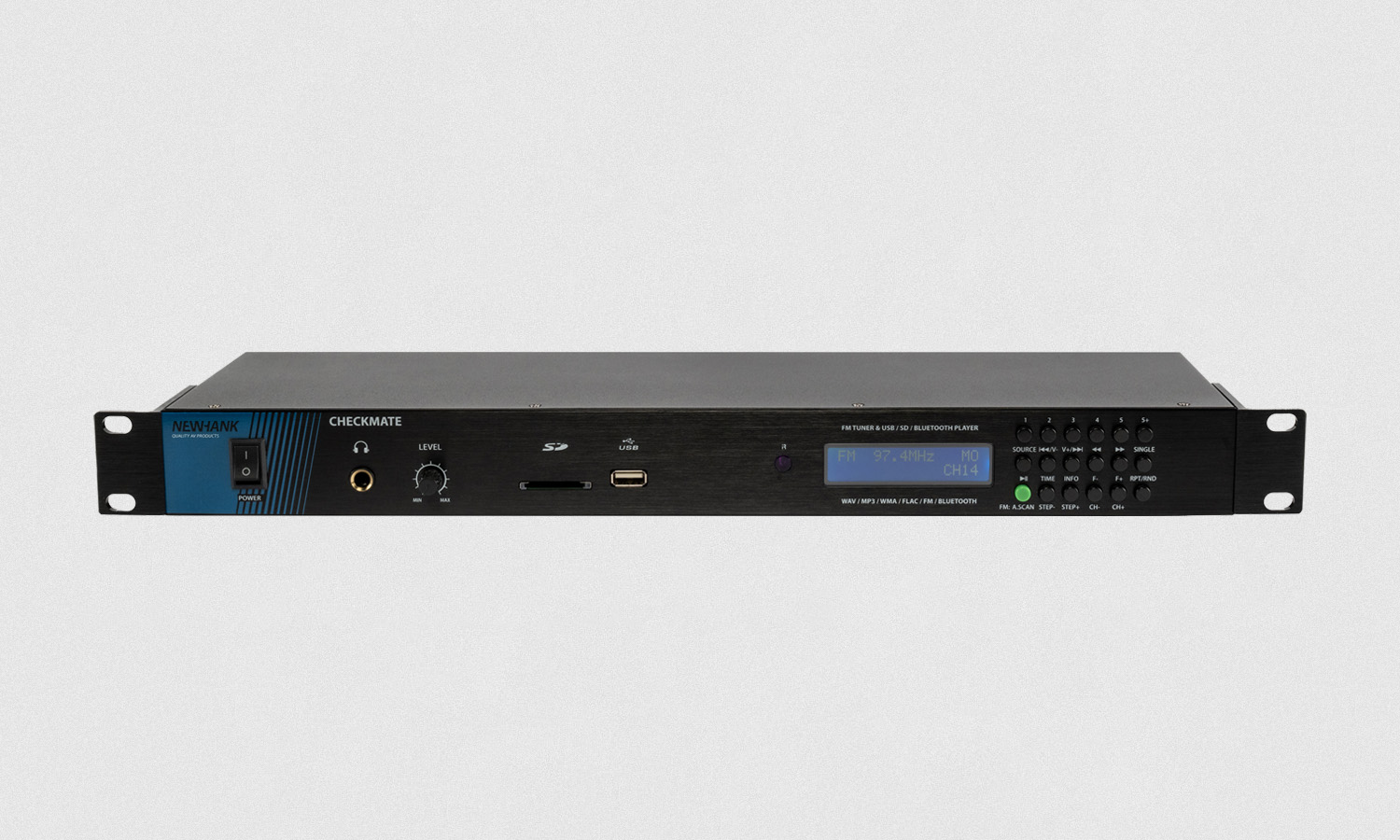

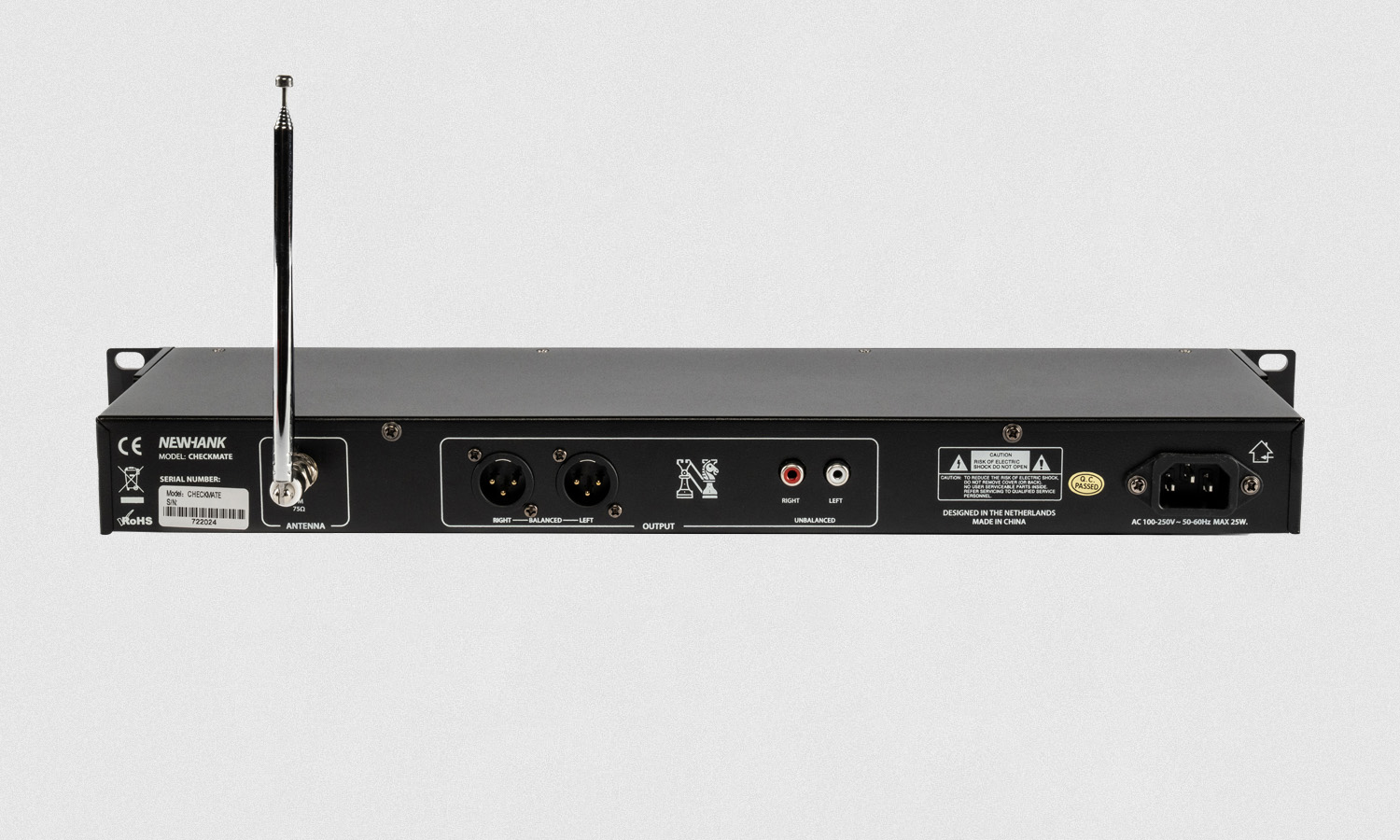

CHECKMATE is a stereo audio source including FM tuner, USB slot, SD slot and bluetooth connection. It performs unbalanced and balanced stereo audio outputs and headphones output (jack) with volume control in frontal panel. IR remote control, FM antenna, 2x RCA cables and rack-mount bracket included.

Key Features:

  • Audio player with Bluetooth
  • USB, SD, FM tuner and Bluetooth connection
  • 2xRCA unbalanced output (stereo)
  • 2xXLR balanced output (stereo)
  • Audio Outputs: 1 x stereo unbal + 1 x stereo bal
  • Local Media: USB, SD, FM tuner, Bluetooth connection
  • Others: IR remote control, FM antenna, 2x RCA cables and rack-mount bracket included
  • Accessories included

Applications:

  • Audio sound source in A/V corporate, retail and education applications
  • Integration in installation global control systems

EAN Code: 8718868408136

  • Power supply: 90v- 260v (50hz/ 60hz)
  • The power consumption: 10w-15w
  • SNR: 95db
  • Frequency response: 20hz-20khz
  • Audio output: rca,xlr
  • Sound specifications: FM/Bluetooth/USB supports WAV MP3 WMA audio files
  • The total harmonic distortion: >0.01%
  • Dynamic Range: > 92db
  • Distortion: >0.01%
  • Frequency: 44.1khz
  • Dimensions: 483x44x130 mm
  • Package Dimensions: 550 x 550 x 450 mm
  • Weight: 2kg
  • Package Weight: 18kg
  • Unit per Package: 8pc
