The Brick4.4 is a compact and versatile 4×4 Dante audio interface designed for seamless integration of analog audio into professional Dante networks. Its slim surface-mount design allows flexible installation in racks, under tables, or inside AV enclosures, making it ideal for commercial, educational, and entertainment environments.

Key Features:

• 4 microphone/line inputs to Dante (up to 96 kHz)
• 4 Dante channels to analogue line level (+18 dBu)
• Compact size: just 250 × 115 × 22 mm
• Microphone preamps with 42 dB gain, adjustable in 3 dB steps via onboard potentiometers
• 48V phantom power, individually switchable per channel
• Powered via PoE or USB-C
• Includes mounting brackets for easy installation
• Euroblock connectors with strain relief for a neat and reliable installation

Electrical

• Frequency response: 20Hz - 20kHz, ±1dB
• Sample rate: 44.1 / 48 / 88.2 / 96 kHz
• Bit depth: 24
• Input sensitivity: +3dBu
• Output signal level: +18 dBu
• Impedance: Input / Output: 20KΩ (Balanced), 10KΩ (Unbalanced)
• Dynamic Range: > 100dB
• Signal-to-noise Ratio: > 80dB
• THD+N: < 0.05% @ 20Hz - 20kHz
• Preamp: Analog gain 0-42dB in 3dB steps; 48V PP per channel
• Power supply: Power over Ethernet IEEE 802.3af, Class 0
• Power consumption: 15 Watt (Max. depending on config)
• Operating temperature: -10 - +55°C
• Operating humidity: 10 - 90%

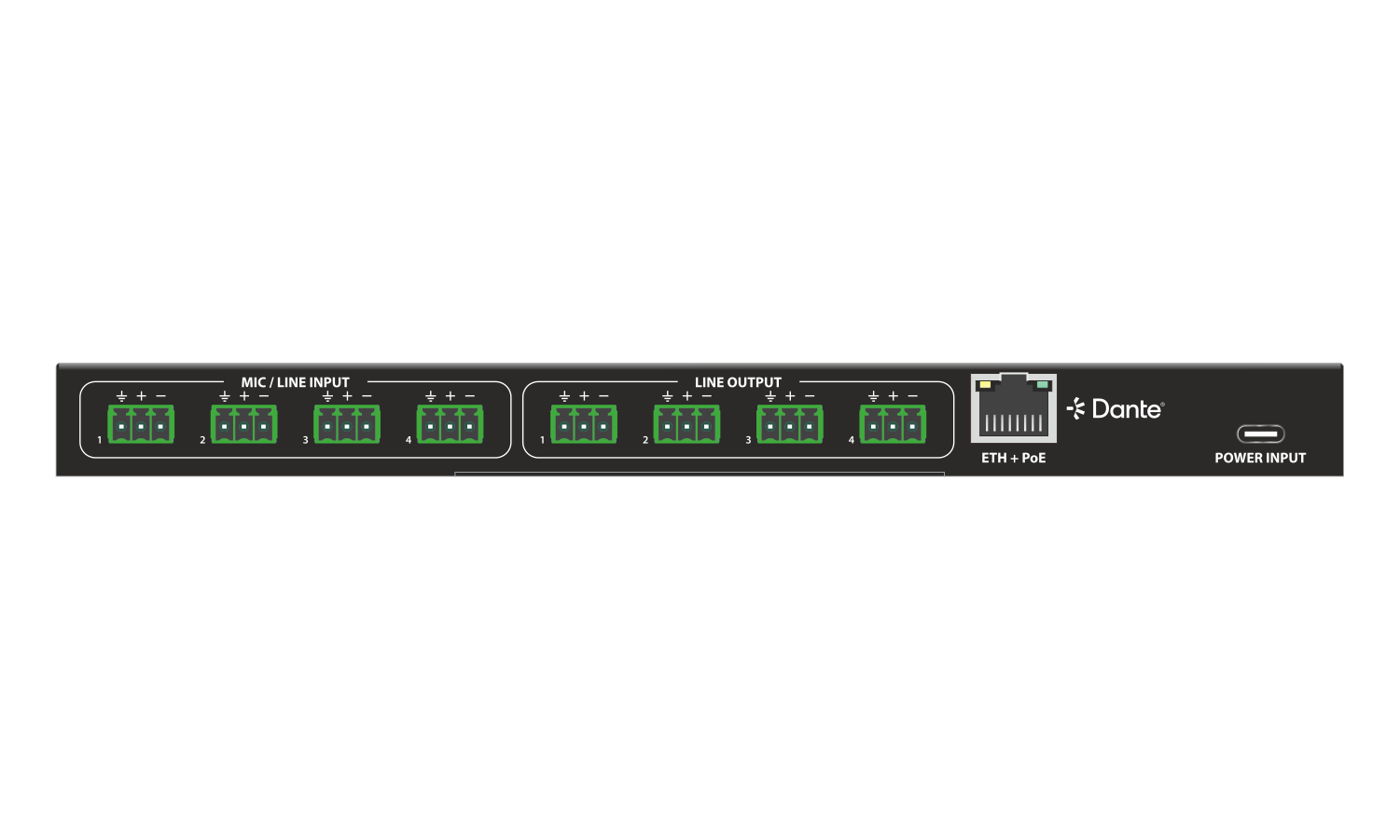

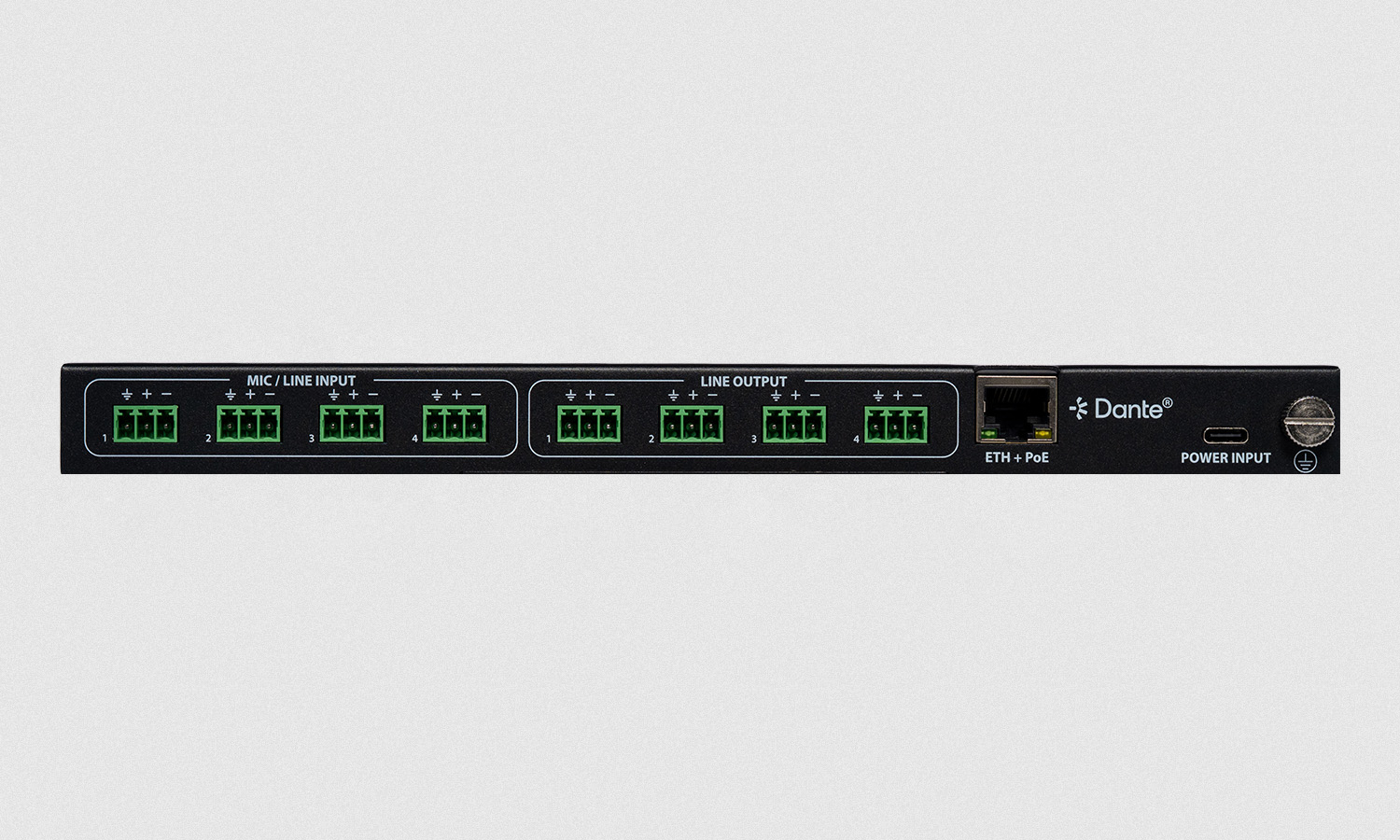

• Connections: 1x RJ45; 8x Euroblock connectors with strain relief lip; USB-C
• Dante: Ultimo UXT Dante / AES67

Mechanical

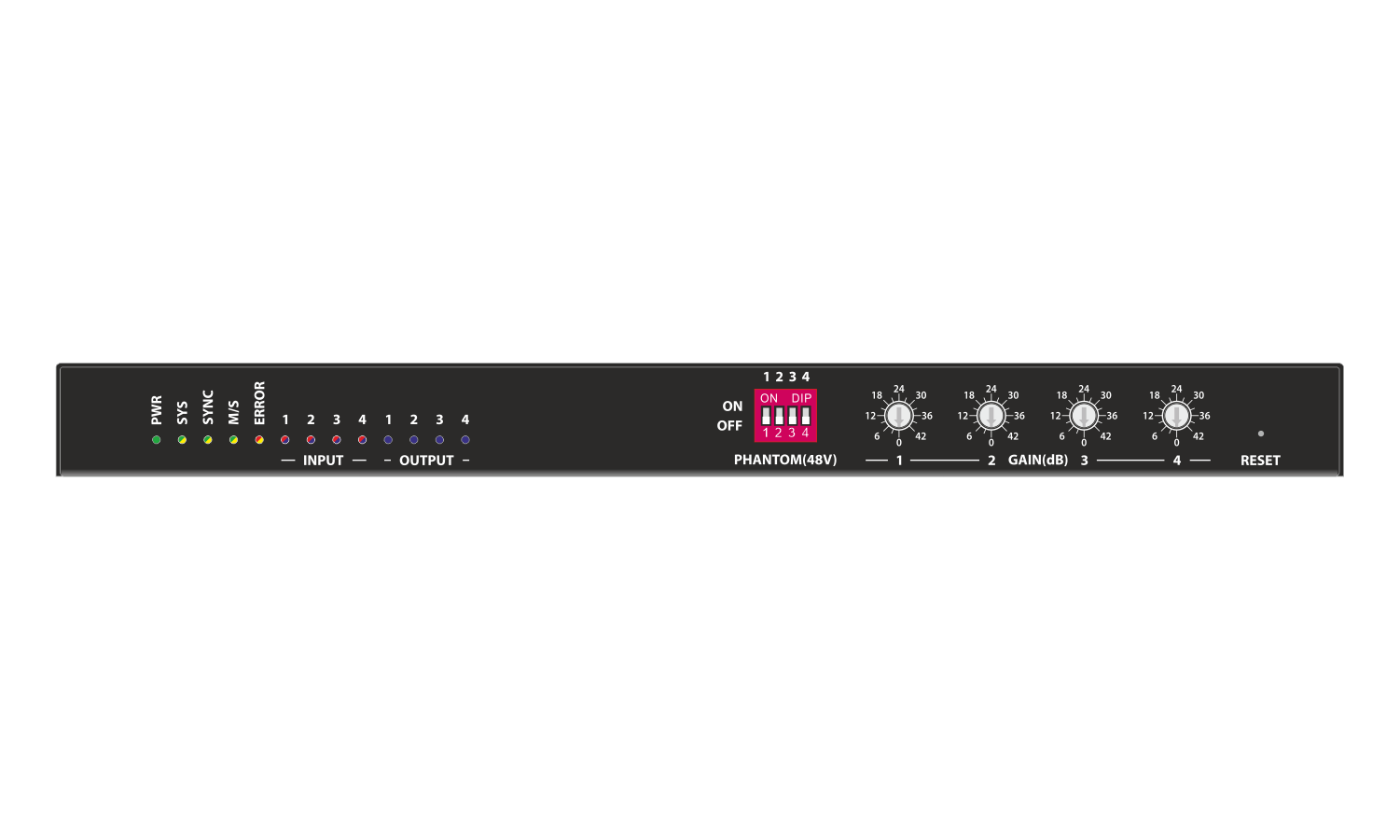

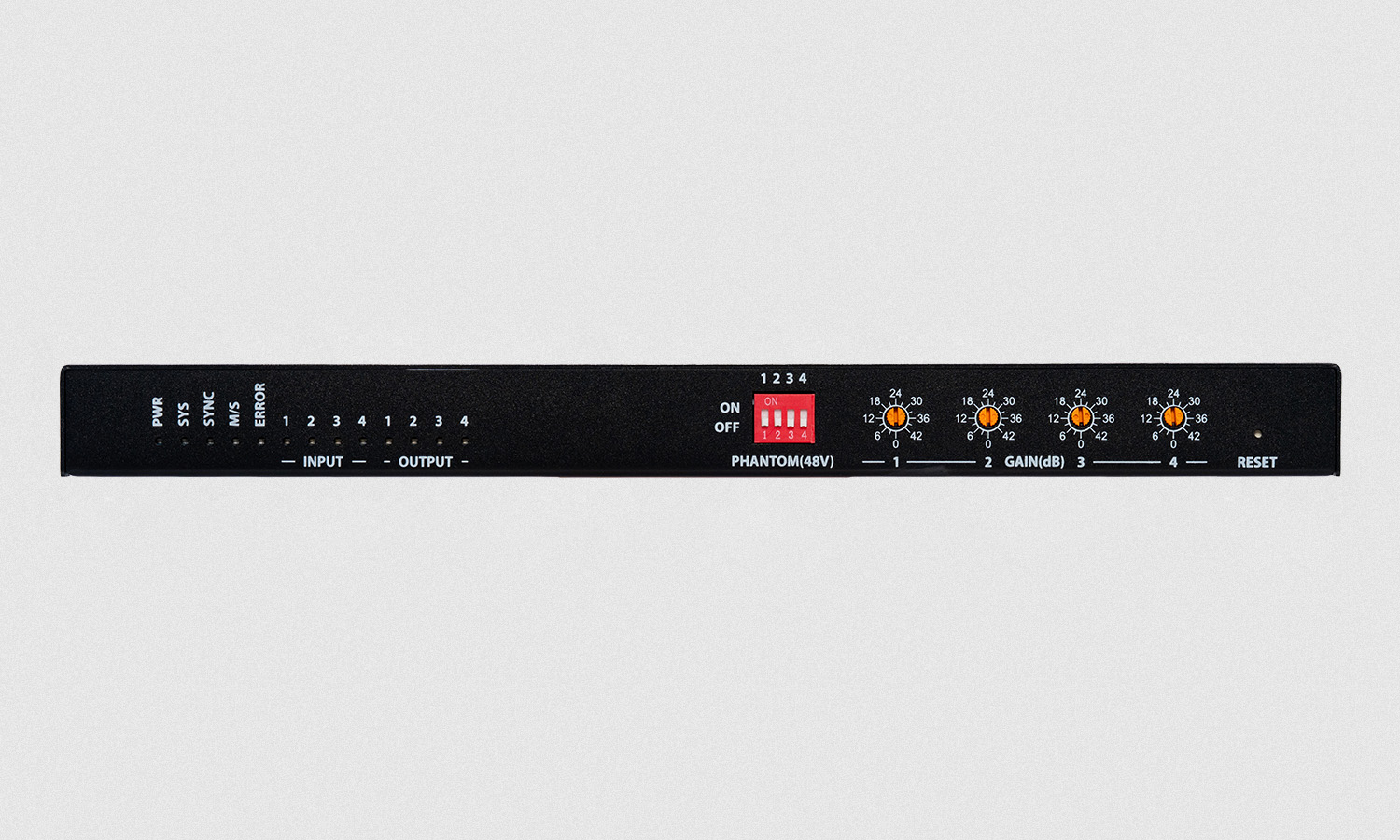

• Controls and indicators: LEDs: Power; System status; Clock Sync; Clock Master/Slave operation; Error; Inputs; Outputs; Phantom Power on/off; Gain 0 - +45dB, 3dB steps
• Weight: 0.75kg; 1.65lbs
• Dimensions: 250x115x22mm without fixing brackets & connectors
• Mounting: Fixing bracket 2x (included)

Packaging

• Master carton: 8pcs
• Dimensions: 278x160x45mm; Master carton: 430x350x270mm
• Weight: 1.0kg; 2.20lbs; Master Carton: 9.0kg; 19.84lbs

General

• Compliance: CE; RoHS
• Warranty: 2 years limited warranty
• EAN Code: 8718868408419
