The Aerobix XL2 is a professional 1U rack mixer designed for fixed audio installations. Building on the proven Aerobix XL platform, it features a completely redesigned internal architecture for improved reliability, noise performance, and installation flexibility.

With four stereo line and two microphone inputs, the XL2 offers flexible connectivity for a wide range of audio sources. A switched-mode power supply, balanced audio paths, and enhanced grounding protection ensure stable operation in demanding environments, making it ideal for background music systems in retail, hospitality, and other professional applications.

Key Features:

• Compact 1U low-noise audio design
• Completely redesigned internal electronics for improved reliability
• High-efficiency switched-mode power supply
• Balanced audio inputs and outputs for improved signal integrity
• Integrated ground lift to reduce hum and grounding issues
• Multiple line and microphone inputs for flexible connectivity

Electrical

• Frequency response: 20Hz - 20kHz, ±1dB
• Input sensitivity: +10dBu
• Output signal level: +22 dBu
• Impedance: Input / Output: 20KΩ(Balanced), 10KΩ(Unbalanced)
• Dynamic Range: > 84dB
• Singal-to-noise Ratio: > 84dB
• THD+N: < 0.02%@ 20Hz - 20KHz
• Preamp: Mic: analog gain 0-40dB, Line: analog gain 0-12dB
• Power supply: 100-240V AC ~ 50-60Hz, 10 Watt
• Operating temperature: -10 - +55°C
• Operating humidity: 10 - 80%
• Connections: Front: 2x 6.35mm TRS Mic in; 1x 3.5mm TRS (Minijack Stereo) Line in
  Back: IEC C13 Power in; 2x XLR Mic in; 3x Stereo sets RCA Line in;
  1x Stereo set XLR Line out; 1x Stereo set RCA Line out

Mechanical

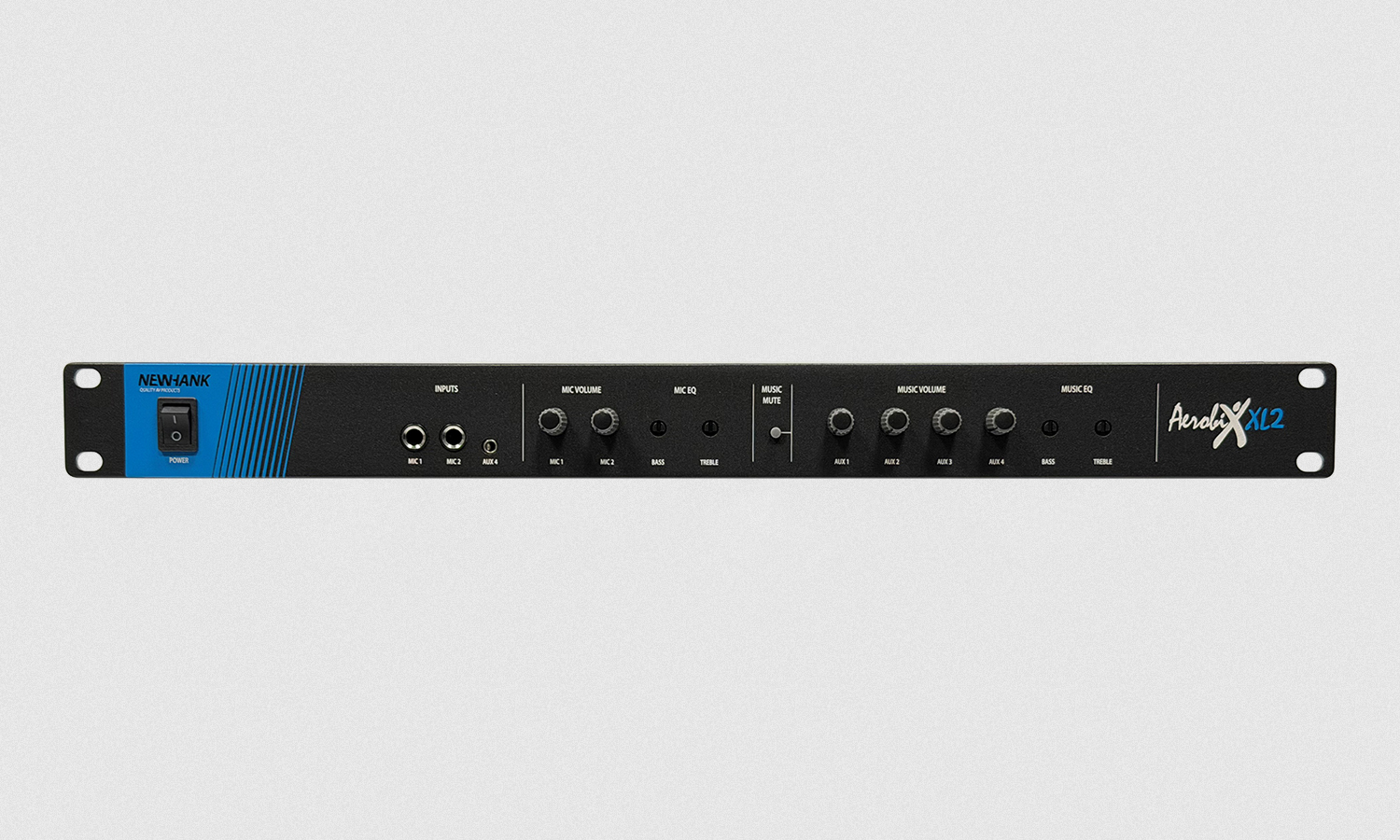

• Controls and indicators: Front: Power; Mic volume per channel; Mic EQ; Music Mute; Music volume per channel; Music EQ

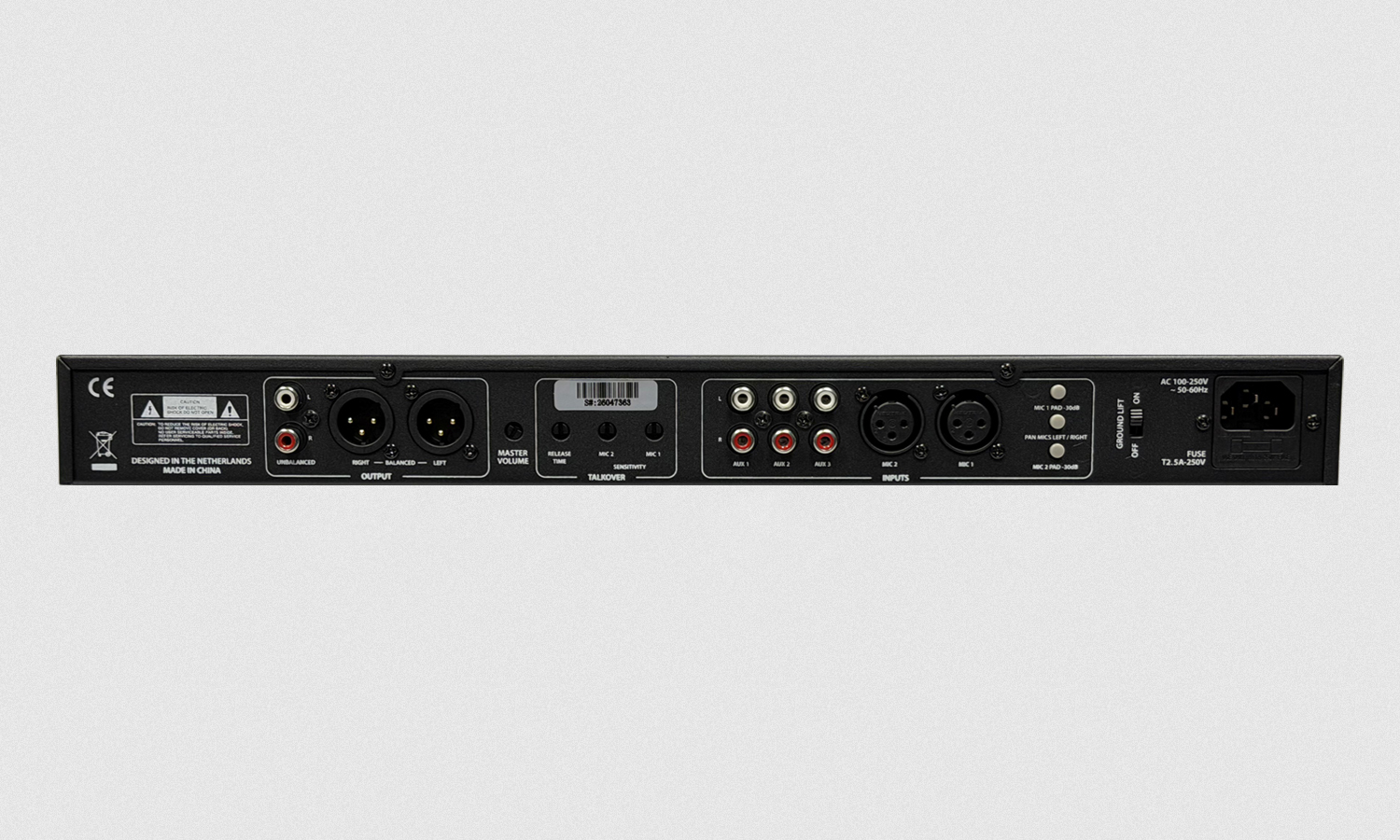

  Back: Ground lift; Pad -30dB per Mic in; Pan Mics left/right; Master volume; Talkover threshold per Mic; Talkover release time
• Weight: 2.3kg; 5.07lbs
• Dimensions: 483(19")x178x44,5mm excl. connectors (155mm deep from rack strip)
• Mounting: 19 inch rack mountablem

Packaging

• Master carton: 5pcs
• Dimensions: 600x376x87mm; Master carton: 615x465x395
• Weight: 3,37kg; 7.45lbs; Master Carton: 18,7kg; 41.2lbs

General

• Compliance: CE; RoHS
• Warranty: 2 years limited warranty
• EAN Code: 8718868408402
